Automatic Banana Slicer Machine For Plantain Chips Making


Our automatic banana slicer machine with stainless steel material can cut bananas into round slices or diagonal slices by using a different feed inlet. The slice has a smooth surface without breaking for the plantain chips making pre-processing, and Malaysia,Philippines,Coimbatore ect customers can adjust the thickness of 1-5mm.The thickness of the slice can be freely adjusted by increasing or decreasing spacers.

banana chips slicer
banana chips slicer

Banana chips slicer machine also for processing potatoes (potatoes), lotus, banana, apple, pear, bitter gourd, carrot,cucumbers, yam, etc. are stalk scales, roots and stems of fruit and vegetable slice equipment.The products cut by this banana slicing machine have a neat shape, uniform thickness, and a yield rate of 99%, which meets the processing needs of export products.

banana slicer machine application details
banana slicer machine application details

Automatic banana slicer machine advantages:

 1.The banana slices cut surface is smooth and no scratches, no knife is connected, the thickness and thickness of the product can be adjusted freely, and the banana cut slices are smooth and uniform without broken.

2. Made of high-quality stainless steel, the inlet can be customized design, no wearing parts, centrifugal working principle, the banana slicer machine has small vibration and can be long.

3. Compact structure design, beautiful appearance, simple operation, high efficiency, low power consumption, easy cleaning and maintenance, safety and sanitation.

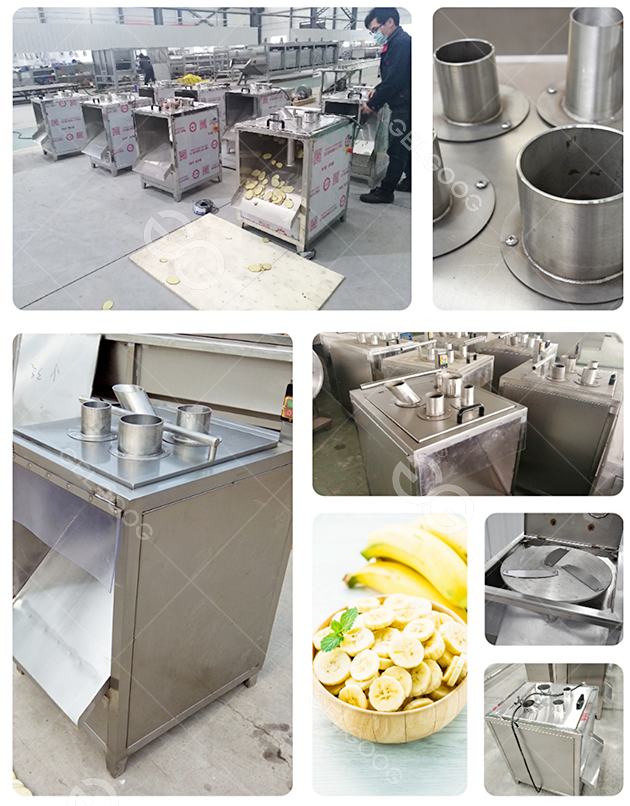

banana slicer machine details
banana slicer machine details

Plantain Chips Slicer Machine Features:

  • Except for the rotary cutter head, high-quality stainless steel is used.
  • Simple structure, durable and easy to maintain.
  • Unique downward pressure feed inlet, which can be customized according to the material size, and the banana cut surface is smooth.banana chips slicing machine

    Banana Chips Slicing Machine Parameter

                Model                         GG-1
              Capacity                      300kg/h
            Dimension             650*550*900mm
               Voltage                     220v/380v
                Power                       0.75KW
                Weight                       100kg

Banana Slicing Machine Operating Instruction

The banana slicing machine is composed of a machine rack, the feed inlet, rotating cutter head, motor and transmission part, etc.

1. Connect the proper power supply and connect the ground line, connect leakage protector.

2. Check if the cutter head rotates in the right direction.

3. Check the banana cutting thickness and see if it is as required. If not. adjust it by increasing or decreasing the spacers.

4. Put the banana into the feed inlet. and the banana slices cut by the high speed rotating cutter will come out from the outlet.

Do’s and Don’ts of Banana Slicing Machine

1. Never put metal or tool into the banana slicing machine feed inlet.

2. The material to be sliced should be clean without clay or gravel to avoid damaging the cutter.

3. Never put your hands into the feed inlet when feeding the banana.

4. Pay attention that the switch must not be splashed when cleaning the banana slicing machine.

5. Check and change the V belt in case the banana slicing machine runs powerlessly.

Here is the green banana slicer working process in our factory for your reference!!

The plantain slicer can equipment with frying equipment for the production of banana chips, or it can equipment with dehydrating equipment to make dried bananas. If you want to get banana powder, you only need to configure a grinder to put it into operation, except In addition, it is also very common in restaurants, school canteens, hotels and other places.
