Description

Fresh cherries have a highly seasonal consumption pattern; to extend their shelf life, many fruit processing companies use IQF to prolong the sales period. Freeze fresh cherries processing line transform cherries harvested during the peak season into standardized frozen products, which are then used in sectors such as baking, ice cream production, jam and juice manufacturing, foodservice, and the broader food industry.

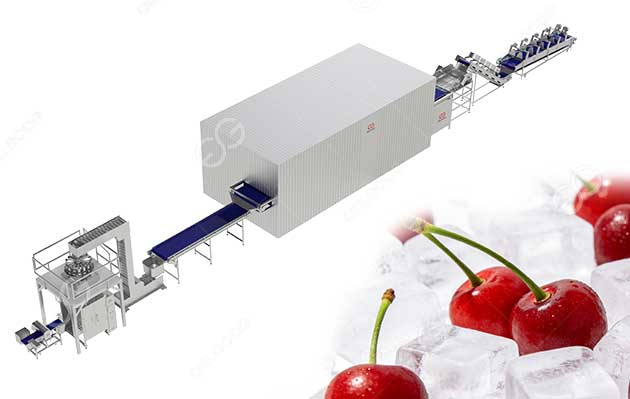

The freeze fresh cherries processing line is a continuous system designed for the post-harvest processing of cherries, including washing, sorting, dewatering, rapid freezing, and packaging. Depending on the requirements for the final product, it can produce various types of frozen cherries, such as whole (with-pit) or pitted varieties.

The freeze fresh cherries processing line can be configured according to the following workflow:

Raw material receiving → Sorting → Washing → Grading/Sizing → De-stemming → Pitting (optional) → Air drying → IQF freezing → Weighing and packaging → Metal detection → Cold storage

The specific configuration of the production line is not fixed. For instance, the pitting equipment can be omitted if the client is producing whole, unpitted frozen cherries; conversely, processes such as pitting or grading can be added based on client requirements if the product is intended for the baking, foodservice, or food manufacturing sectors.

Current industrial IQF cherry freezing machine typically rapidly lowers the fruit’s core temperature to -18°C or below; however, the actual freezing temperature, freezing time, and conveying speed must be adjusted based on the cherry variety, size, sugar content, and production capacity.

Main Processing Workflow and Equipment

1. Raw Material Intake and Preliminary Sorting

Upon entering the freeze fresh cherries processing line, the cherries undergo manual inspection to remove those that are rotten, damaged, or significantly uneven in ripeness, as well as any obvious foreign objects.

Key equipment: Feeding system, conveyor, manual sorting table.

2. Washing

The primary purpose of washing is to remove soil, dust, and other foreign matter from the surface of the cherries; the post-harvest washing method affects the removal of pesticide residues and the subsequent quality of the fruit.

Key equipment: Bubble-type fruit washing machine, spray washing machine, or combined washing equipment.

3. Sorting, Grading, and Destemming

After washing, obviously defective fruit must be removed, and the fruit graded by size according to product specifications. For products requiring destemming, a cherry destemmer can be installed.

Key equipment: manual sorting conveyor, size grader, cherry destemmer.

4. Pitting

For pitted IQF cherries, specialized pitting equipment is required; this not only increases the pitting rate but also minimizes damage to the fruit flesh.

Key equipment: Cherry pitter

5. Draining and Air-Drying

After washing, residual moisture typically remains on the surface of the cherries. If they are sent directly to the quick-freezing equipment, excess free water can easily form an ice layer and increase product clumping.

Key equipment: Vibrating drainer, air dryer, cold-air drying equipment.

6. IQF Rapid Freezing

This is the core stage of the freeze fresh cherries processing line, where fresh cherries are transformed into a quick-frozen product. Rapid freezing minimizes the time the product spends passing through the zone of maximum ice crystal formation, thereby reducing damage to the fruit’s cellular structure caused by ice crystals. Industrial cherry freezing machine typically utilize high-speed cold air to rapidly cool individual cherries, achieving discrete freezing and minimizing product clumping.

Key Equipment: IQF fluidized bed freezer or continuous tunnel freezer; refrigeration system.

7. Packaging and Frozen Storage

Following quick-freezing, the cherries proceed to vibration screening, weighing, packaging, and metal detection. Once packaged, the product should be promptly transferred to a low-temperature cold storage facility to minimize exposure to ambient temperatures and reduce quality degradation caused by temperature fluctuations.

Key equipment: Vibrating conveyor, automatic weigher, packaging machine, metal detector, finished product conveyor.

Key Considerations in the Freezing Process for Cherries

• First, raw materials must enter the cold chain as quickly as possible. Cherry quality deteriorates rapidly after harvest; therefore, the time elapsed between the orchard and the processing facility should be minimized. Rapid pre-cooling helps reduce respiration rates and maintain fruit firmness.
• Second, minimize mechanical damage. Cherry skins and flesh are delicate; processes such as loading, conveying, washing, and grading should avoid excessive drops, crushing, or violent impacts.
• Third, strictly control the hygiene of the washing water. The water used for washing should be filtered, recirculated, and changed regularly in accordance with production requirements to prevent cross-contamination caused by contaminated water.
• Fourth, control surface moisture prior to freezing. If cherries carry excessive surface moisture before entering the cherry freezing equipment, they are prone to icing and clumping; consequently, draining and air-drying are crucial steps for optimizing the quick-freezing outcome.
