Description

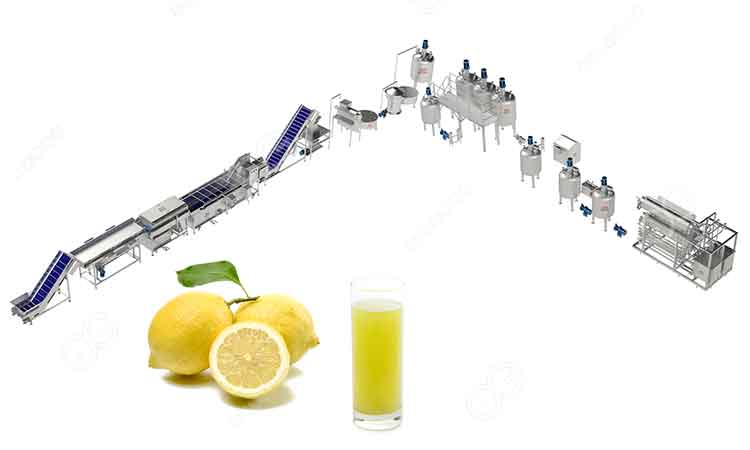

The lemon juice processing plant is an automated fruit juice processing system that integrates functions such as washing, extraction, filtration, concentration (optional), sterilization, and filling. By utilizing an advanced control system to precisely manage each processing stage, the line not only enhances production efficiency but also ensures consistent product quality and minimizes errors associated with manual operation.

This lemon juice processing plant offers advantages such as continuous production, integrated equipment control, and real-time monitoring of production data. Manufacturers can select capacity configurations based on market demand, enabling flexible application ranging from small-scale processing plants to large-scale juice production facilities.

Lemon Juice Processing Workflow:

The complete lemon juice processing procedure involves multiple stages, with each step influencing the final product’s flavor, color, and nutrient retention. An intelligent lemon juice processing factory typically comprises the following key processing steps:

1. Raw Material Selection and Washing

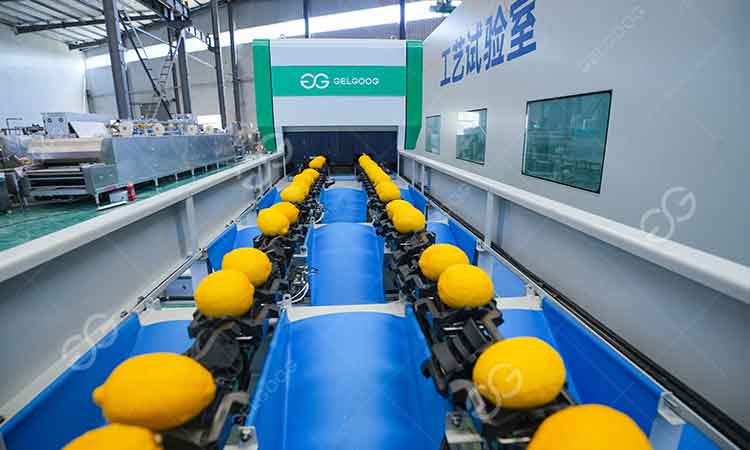

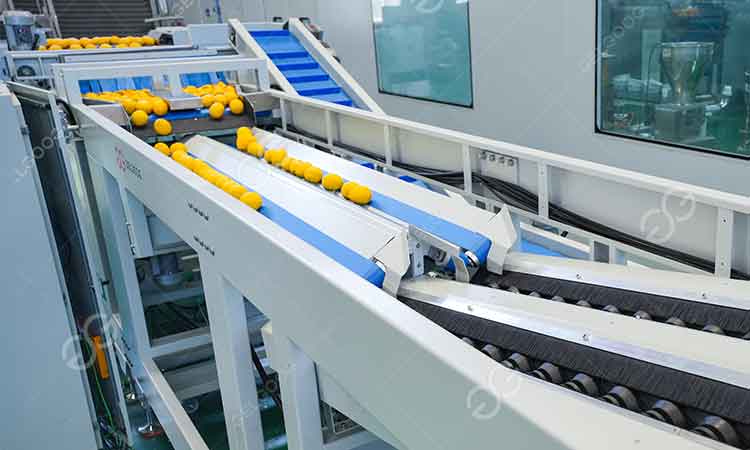

Upon entering the production line, fresh lemons undergo manual or automated sorting to remove any that are rotten, damaged, or fail to meet quality standards. Subsequently, automated washing equipment is used to remove soil, dust, and other impurities from the lemon surfaces.

2. Juice Extraction

Juice extraction is the core stage of the lemon juice processing plant. Specialized juice extraction equipment effectively separates the juice from the pulp and peel, maximizing juice yield while minimizing the transfer of bitter compounds from the peel into the juice. Halving-style juice extractors are typically used for lemons.

3. Filtration and Blending

Freshly squeezed lemon juice typically contains pulp particles, fibers, and minor impurities; it requires processing through a filtration system to achieve the desired mouthfeel and stability. Depending on market demand, manufacturers can adjust the juice’s sugar and acidity levels or blend it with other fruit juices to develop a variety of beverage products.

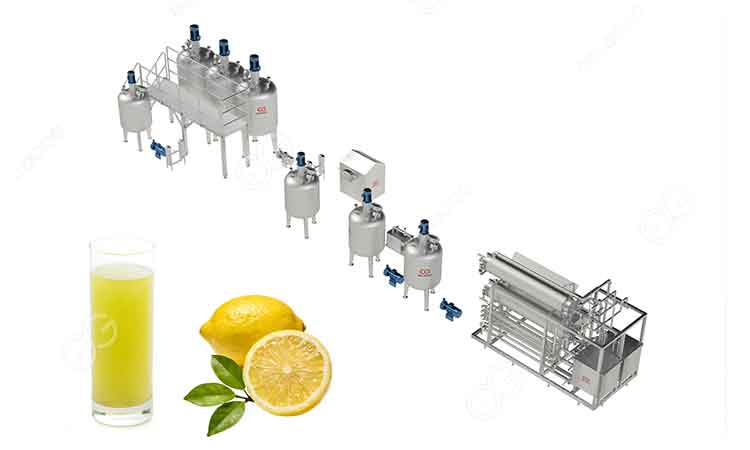

4. Pasteurization and Filling

To extend shelf life and ensure food safety, the lemon juice undergoes pasteurization, a process that reduces microbial content while preserving the juice’s original flavor as much as possible.

After pasteurization, the juice is fed into automated filling equipment to be packaged in bottles, cans, or pouches, resulting in a finished product ready for sale.

Main Equipment for Lemon Juice Processing Plant:

1. Lemon Washing Machine

This machine is designed to remove dirt and impurities from the surface of lemons and serves as the first step in the lemon juice processing factory. It employs a continuous washing method and can be configured with features such as air-bubble agitation and water spraying—tailored to the characteristics of the raw material—to enhance cleaning efficiency while reducing labor requirements.

2. Lemon Juicing Machine

The lemon juicing machine is a key piece of equipment in lemon juice processing plant. It effectively separates juice, peel, and pulp, thereby maximizing raw material utilization, and is suitable for processing fruits such as lemons, oranges, and tangerines.

3. Lemon Juice Filtration Equipment

The filtration equipment is primarily used to remove impurities and excess pulp from lemon juice, resulting in a smoother, more uniform finished product. Filtration units with varying degrees of precision can be configured to meet specific product requirements.

4. Sterilization Equipment

The sterilizer subjects lemon juice to heat treatment by controlling temperature and duration, effectively reducing microbial levels and enhancing the product’s storage stability.

Application Scope:

The lemon juice processing plant is suitable not only for processing lemons but also widely applicable to juice production from various citrus fruits. By adjusting equipment configuration and processing parameters, the same production system can meet the processing requirements of different fruits.

This production line is suitable for:

• Lemon processing: production of lemon juice, concentrated lemon juice, lemon beverages, and other products;
• Orange processing: production of freshly squeezed orange juice, orange juice beverages, and orange juice raw materials;
• Citrus processing: production of citrus juice, blended fruit juice, and other products.
