Description

The pineapple quality and sugar sorting line is a modern fruit grading system that integrates intelligent visual inspection, internal quality analysis, and automatic sorting technologies. Utilizing specialized fruit quality and sugar content sorting machines, the line comprehensively inspects pineapples for appearance, size, weight, maturity, and internal sugar content, automatically grading them according to preset standards.

Purpose Of Pineapple Quality And Sugar Sorting:

The primary purpose of sorting pineapples based on quality and sugar content is to categorize them according to their quality levels using scientific and precise testing methods, thereby directing each category of product to the appropriate sales channels.

First, quality sorting enhances the visual consistency of pineapples. During growth, harvesting, and transportation, pineapples may sustain skin damage, uneven coloration, disease spots, or mechanical bruising. Selling such lower-quality fruit alongside premium-quality fruit can harm the overall brand image. Fruit quality sorting machines enable the rapid identification of pineapples with visual defects, allowing them to be automatically rejected or sorted according to standards, thereby improving product quality.

Secondly, grading based on sugar content can enhance the consumer experience. A pineapple’s sweetness is closely linked to its ripeness, and sugar levels can vary significantly between batches. If fruit with lower sweetness reaches the high-end market, it can diminish consumer satisfaction. The pineapple sugar sorting machine utilizes non-destructive testing technology to analyze the internal sugar content of pineapples and categorize them by sweetness level, enabling enterprises to launch pineapple products of varying grades to meet market demand.

Working Flow:

A complete automatic pineapple sorting line typically consists of multiple pieces of equipment, enabling a continuous production process that spans from conveying and inspection to automatic sorting.

1. Automatic infeed conveying system

The infeed system is responsible for uniformly transporting pineapples to the inspection area, ensuring each pineapple maintains the proper position and spacing to prevent any being missed during inspection.

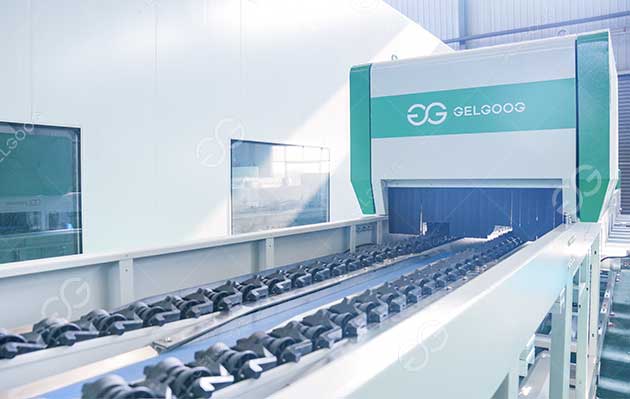

2. Fruit quality sorting machine

The fruit quality sorting machine is a core component of the system, primarily used to inspect the external quality of the pineapples. The equipment captures images of the fruit using high-definition industrial cameras and employs intelligent algorithms to analyze differences between individual pineapples. It is capable of rapidly identifying external defects and automatically sorting the fruit based on preset grading standards.

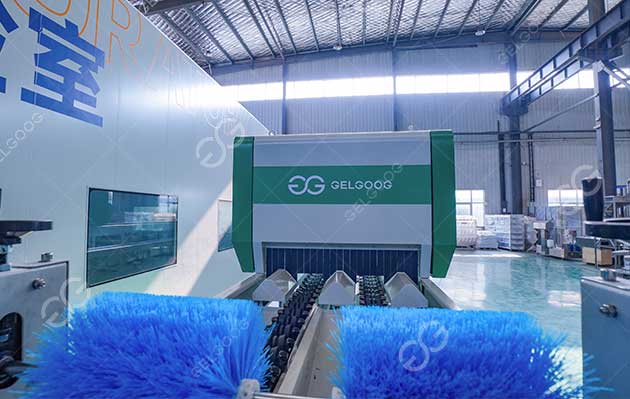

3. Pineapple sugar sorting machine

The pineapple sugar sorting machine is primarily used to assess the internal quality of pineapples. The equipment employs non-destructive testing methods to analyze sugar content while preserving the integrity of the fruit. Once testing is complete, the system automatically controls the sorting mechanism to separate pineapples based on their sugar content levels.

4. Automated sorting system

Once the inspection data is transmitted to the control system, the equipment automatically sorts the produce according to preset grades.

Pineapples of different grades are directed into their respective conveyor channels, facilitating subsequent packaging, sales, or processing.

Fruit Quality Sorting Machine Features:

1. Enhanced detection precision

The equipment combines visual inspection with internal quality analysis to evaluate pineapple quality from multiple perspectives, thereby improving grading accuracy.

2. Non-destructive testing technology

Brix (sugar content) measurement requires no cutting; the pineapples remain intact after testing and are ready for immediate sale.

3. Flexible grading standards

Users can adjust inspection parameters—such as Brix ranges, weight grades, and appearance standards—to meet the requirements of different markets.

The pineapple quality and brix sorting line can be integrated with washing machines, air dryers, packaging machines, and other fruit processing equipment to form a complete, automated pineapple processing system.
