Automatic Dragon Fruit Cleaning Drying Line Grading Machine

Categories: ,


The dragon fruit cleaning line can washing the tropical dragon fruit with air bubble and brush roller washing machine and uses room temperature air to dry the surface water of the material without damaging the fruit skin.After drying the dragon fruit ,it can automatically grading them into different size.

dragon fruit washing machine
dragon fruit washing machine

How To Clean The Dragon Fruit

Pitaya is oblong or ovoid, with red skin, fleshy, egg-shaped and sharp-pointed scales. Therefore, unlike ordinary oval fruits with a smooth surface, professional cleaning equipment is required for cleaning.To clean the dragon fruit we mainly use 2 different professionals washing machine.

Here is our youtube video of the dragon fruit washing process feedback from our customer for your reference!!

Dragon Fruit Air Bubble Washing Machine

The dragon fruit washing machine uses high-pressure water to impact the surface of the dragon fruit;
Form a washing water column containing bubbles;
The high-speed movement of the water column impacts the surface of the laundry;
The energy produced when the bubble bursts when it comes into contact with an object;
Will have an impact and scrubbing effect on the dragon fruit;
Clean the dragon fruit in the first step.

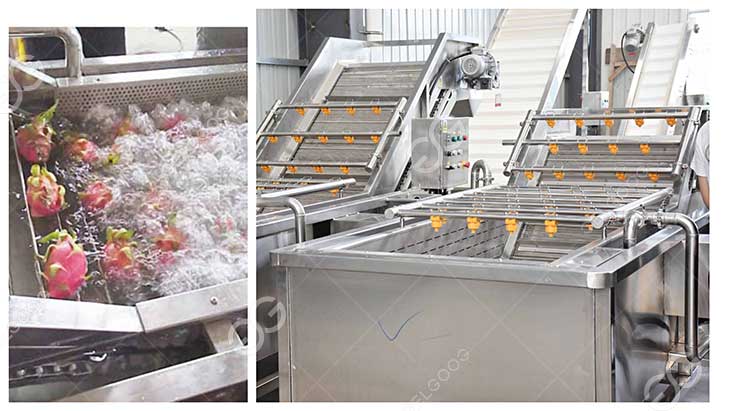

dragon fruit bubble washing machine

Dragon Fruit Bubble Washing machine Parameter

Air Bubble Washing Machine
Model Mesh belt width Conveying power Pump power Air pump power Hand power (customized) Dimensions (MM)
XQ2500A 800 0.75 0.75 2.2 0.55 2725×1504×1329
XQ3000A 800 0.75 0.75 2.2 0.55 3225×1504×1329
XQ3500A 800 0.75 0.75 2.2 0.55 3725×1504×1329
XQ4000A 800 0.75 0.75 2.2 0.55 4225×1504×1329
XQ5000A 800 1.5 1.5 4 0.55 5225×1504×1329
XQ6000A 800 1.5 1.5 4 0.55 6225×1504×1329

Dragen Fruit High Pressure Spraying Washing Machine

1 Multi-angle cleaning without dead ends, thorough pesticide residues on vegetables and dragon fruits;

2. Low energy consumption, high output, green and healthy;

3. The inner barrel adopts a unique high-tech technical structure, which can strongly drive the movement of water. At the same time, the surface of the inner barrel has low friction, which is clean and does not damage the skin of dragon fruits and vegetables;

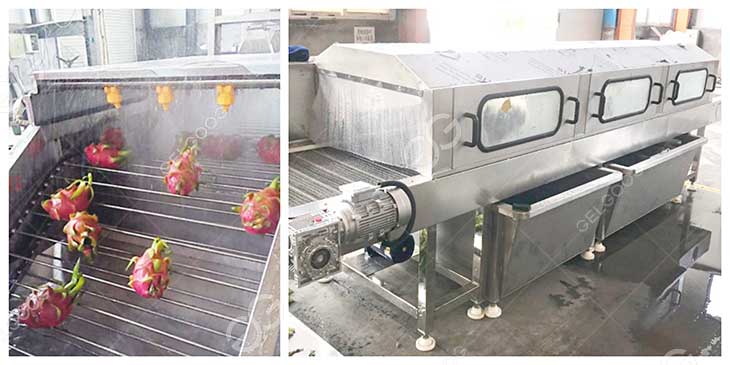

dragon fruit high pressure spraying machine

4. Fully automatic control, short dragon fruit cleaning time.

5. Transparent windows, visual monitoring of the entire sterilization, detoxification and cleaning process, safe and secure;

6. The dragon fruit washing basket can be moved at will, it is convenient to take it out, and the vortex spray water impact cleaning is used to ensure that vegetables and dragon fruits are not damaged by heavy machinery.

7. It occupies a small area and is easy to move.

mango air drying machine in our factory

Dragon Fruit Drying System

The turning air dryer have multiple sets of centrifugal fans and corresponding turning mechanisms;

When the air dryer runs to the turning position, the dragon fruit will automatically turn over 180°, and the air dryer equipment will air dry the other side of the dragon fruit;

Air-dry the surface of the material after several times of overturning;

The air source of the machine adopts normal pressure and low temperature wind to effectively protect the color of the dragon fruit.

dragon fruit grading machine
dragon fruit grading machine

After drying the washed dragon fruit ,we can also support dragon fruit grading machine to sorting  them into different size.The dragon fruit grading machine uses high-elastic materials to make the fruit plate, which can subdivide the dragon fruit of different sizes and grades. The well-designed fruit plate will not cause damage to the fruit skin, retain the original quality and taste of the fruit, and reduce the loss , improved revenue.
