500kg/h Hot Chili Sauce Manufacturing Processing Equipment


The chili hot sauce manufacturing equipment selects the mature and carefully cultivated red peppers in the farm, and after cleaning, handle removal, preheating, pulping, sterilizing and canning, we can get the rich flavor and bright color chili hot sauce. The hot chili sauce is served with fried chicken, grilled meat, burgers, hot dogs, pizza, French fries, seafood, pasta, salad, hot pot and other foods in the United States, Mexico, Thailand, Indonesia,South Africa and other countries.

chili sauce manufacturing equipment
chili sauce manufacturing equipment

Chilli sauce processing: Fresh chili → material selection → handle removal, cleaning → crushing → preheating →pulping→ vacuum concentration → blending → filling → sterilization → cooling → inspection → finished product

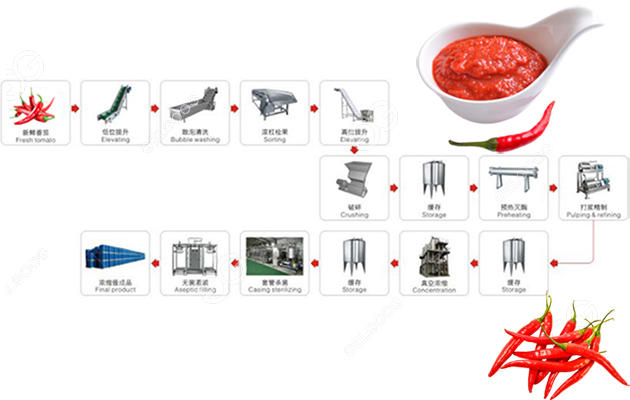

Chilli sauce processing flow chart

①Material selection: According to the needs of different regions and different consumers, choose different varieties of pepper raw materials, and choose fresh peppers that are free of rot and insect pests.

Local pepper: thin skin, average meat quality (the meat is thin and crispy when bitten), spicy aroma, bright red color, and even pieces after being broken.
American red pepper: thick, smooth skin, full flesh, strong spicy flavor, but the pepper has a high oil content. The color is ruddy, the brightness is good, and there are lumps and consistency after being broken.
The line pepper is long, about 1 cm thick, with ruddy color, thin skin, full flesh, high fat content, strong spicy aroma, and even pieces after being broken.
Cauliflower: thick skin, thick flesh, light spicy taste, slightly sweet taste, red on the surface, but the coloring effect is not good, and it will be sticky after being broken.

Different kind chili
Different kind chili

②Remove the stalk and wash: remove the fruit stalk, so as not to affect the color of the finished product and cause too much crude fiber to affect the taste. And wash away the sediment on the surface of the pepper with water.

③Crushing: The crushing particle size is required to be below 3mm.

④Preheating: Heat the crushed chili paste to 85°C and keep it for 15 minutes to preheat and inactivate the enzyme.

chili preheating system
chili crushing & preheating system

⑤Vacuum concentration: Put the preheated chili paste in a vacuum concentration equipment for vacuum concentration. The vacuum degree is 650-700mmHg, and the temperature is controlled below 70C.

⑥ Blending: According to the requirements of hotness, sweetness, saltiness and acidity of chili sauce in various places, add appropriate amount of salt, citric acid and sweetener to the concentrated chili sauce.

chili sauce blending and filling system
chili sauce blending and filling system

⑦Canned and sterilized: hot-filled at 80- -85C. Keep at 100C for 15 minutes for sterilization.

⑧Cooling and inspection: After cooling, samples are kept at 37C for 7 days, and the cans are not damaged for inspection, which means they are qualified.

Chili sauce quality indicators

Chili sauce Sensory indicators
①Color: with the color of bright red pepper.
②Tissue morphology: the sauce body is delicate, uniform, and viscous.
③Taste: It has the flavor of chili sauce.
④ No pathogenic bacteria and spoilage caused by microorganisms, no impurities.

Different hot chili sauce
Different hot chili sauce

Chilis sauce physical and chemical indicators
①Soluble solid content: 11%-12%.
②NaCl content: 8%–8.5%.
③Heavy metal content (per kilogram of product): tin does not exceed 20mg, copper does not exceed 10mg, and lead does not exceed 2mg.

Chili sauce processing line parameter



Chili Washing Machine Chili Sauce Making Machine Airtight mixing and cooling tank 1000L sterilization Unit Chili Sauce Packing Machine
Model GGXQ5000 GG-180 GG-1000 GG-60C
Capacity 1T/h for tomato 800-1000Kg/h 1000L 1T per hour
Power/Voltage 5.5/1.5/2.2 Kw 18.5Kw 3kw/1.5kw 20Kw/380v 1KW/220V/380V
Weight 900 Kg 340Kg
Dimensions 5100*1400*1500 mm 830*490*1100mm 1600*1600*2200 (For one tank) 625*750*1550m
Fineness 100-200
Packing speed 25-60 bag / min

Hot sauce manufacturing equipment features

1. Customized chili sauce processing line can be provided according to the processing volume of customers;
2. The whole set of equipment is made of food-grade stainless steel to ensure the safety and sanitation of chili sauce production;
3. You can flexibly adjust the flavor according to your local chili sauce flavor and ensure the unique flavor of the chili sauce

If you also want to start the hot chili sauce business in your locally?Welcome to contact ue to get customize solution and 100% free quota!!
