Industrial Fruit Mango Bubble Washing Cleaning Machine

Categories: ,


Mango washing machine is an industrial cleaning equipment that uses bubble tumbling and high-pressure water flow to clean the surface of mangoes. It can peel off and wash away the dirt on the surface of the mango, achieving the purpose of cleaning the surface of the object, and will not damage the mango skin.

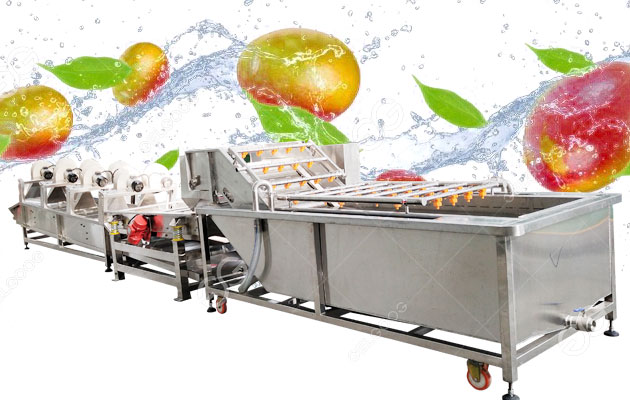

mango washing machine
mango washing machine

Mangoes Washing Machine Advantage

▼The machine can continuously feed and discharge materials when it is working, and has advanced design, low energy consumption and high efficiency;
▼Hygienic, safe and efficient, it is the ideal equipment for the mango processing industry.
▼The machine’s backwater equipment adopts circulating water function, which saves a lot of energy.
▼This machine can be connected to disinfection equipment such as ozone generator to play a role in disinfection and sterilization.
▼It has the characteristics of high cleaning, energy saving, water saving, stable and reliable equipment.
▼Simple operation, convenient maintenance and convenient connection.

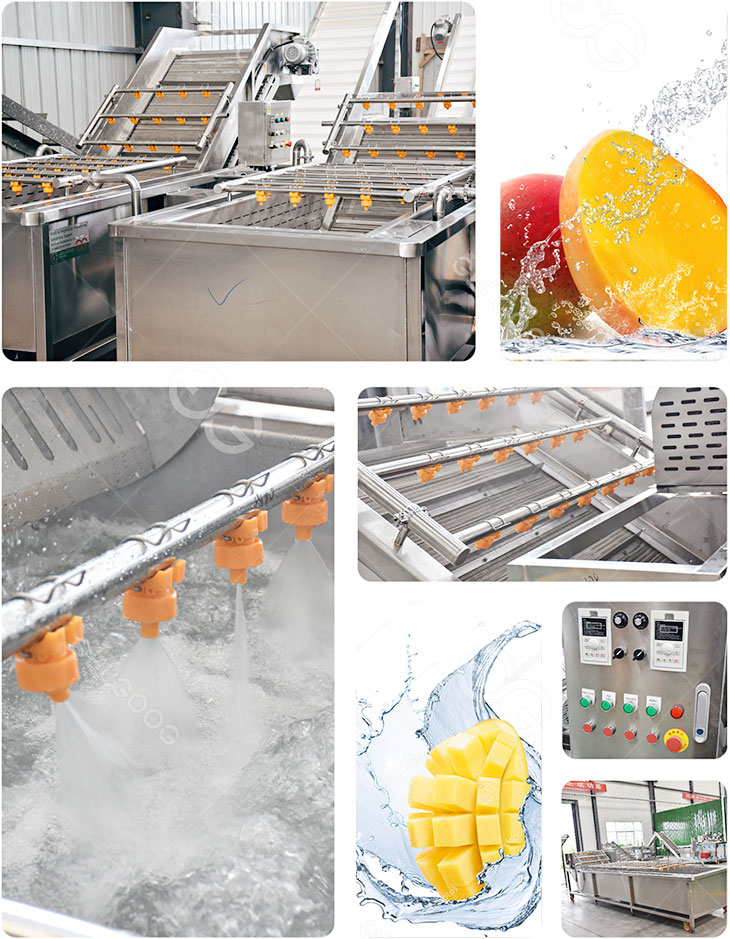

mango washing machine details
mango washing machine details

Green Mango Washing Machine Features:

1. The overall equipment is made of food-grade SUS304 stainless steel, which is beautiful and has a long service life and is not easy to deform.
2. The equipment adopts two cleaning methods: bubble tumbling and high-pressure water flow, and the cleaning effect is more thorough.
3. The inner tank device can be cleaned by the high-pressure water gun after the staff operation is completed, which is convenient and simple.
4. The bottom of the machine is inclined to process and weld, which is beneficial to the sewage and drainage of the equipment.
5. The outer 50*50 stainless steel 304 square tube is welded to form a long service life without deformation.
6. The secondary clean water spray device is cleaned with clean water twice.
7. The overflow tank device can guide the attachments on the water surface to the overflow tank for discharge through the water flow.

mango washing details in our factory
mango washing details in our factory

Mango washing machine parameter

Mango Washing Machine Power(KW) Size(mm) Capacity(KG/H) Weight(KG) Roller Size(mm)
GGXM800 1.1 1600*850*800 400 220 800
GGXM1000 1.5 1800*850*800 600 260 1000
GGXM1200 1.5 2000*850*800 800 280 1200
GGXM1500 2.2 2300*850*800 1000 320 1500
GGXM2000 3 2800*850*800 1500 420 2000
GGXM2600 4.37 3100*850*1450 2000 600 2600
mango washing drying machine
mango washing drying machine

Mango Cleaning Machine Operating procedures

▼Clean the water tank and fill it with water; fill the main tank with clean water until there is water overflow at the overflow.
▼Start the conveyor mesh belt motor to make the mesh belt run normally and in the correct direction;
▼Start the vortex pump and inject air into the water tank to make the water in the tank churn;
▼Open the spray pipe valve to make the water spray evenly on the mesh belt;
▼Check all operating parts and work after confirming normal operation.
▼Depending on the degree of cleaning of the material, it can be cleaned separately and then transported by the mesh belt.

Here is our mango washing machine working processin our factory for your reference!!

After the mangoes are washed, we can also equip you with the corresponding air drying system as the pictures show there are two drying system.

The cleaned mango enters from the feed end and vibrates forward through the vibrating eccentric device, which can remove most of the water droplets in a shorter time as soon as possible, and then enter the air trunk line.

mango air drying machine in our factory
mango air drying machine in our factory

The air drying machine adopts normal temperature and strong wind to dry the water, which avoids the incompleteness and secondary pollution of manual water removal. The automatic drying function of the product reduces the staffing of the processing plant and saves labor. It is also compatible with bubble cleaners, etc. Other equipment can be connected at will to form a streamlined operation.

If your final products is mango pulp after washing, we also have a mango pulp production line. Please feel free to contact us for any questions about mango processing. Online consultation.
