Description

The potato brush peeler is mainly used for cleaning roots and vegetables such as carrots, potatoes, sweet potatoes, apples, pears and red fruits. It can be used on the quick-frozen French fries processing line developed by our factory or used alone. This machine can discharge continuously or intermittently when it is working. It has advanced design, convenient operation, low energy consumption, sanitation, safety, and high efficiency. The new environmental protection brush cleaning machine is improved by combining the design of imported foreign machines. Raise the machine body and place the motor on the bottom. The waste collection area below the machine has enough space for workers to remove waste.

Structure:

1. This potato brush peeler is mainly composed of frame, brush roller, transmission system and water pipe assembly

2. All parts of the machine in contact with food are made of materials that meet food hygiene requirements to ensure long-term work is not rusty, corrosion-free, non-toxic and harmless.

Working principle

After the raw materials are put into the machine, the brush roller rotates to scrub the raw materials and turns them over continuously. At the same time, the drain pipe is continuously sprayed to wash off the dirt from the raw materials until it is washed. material. Transmission principle The transmission system of this machine adopts belt, sprocket and other transmission forms.

Technical Parameters

Root vegetable brush washer peeler machine	Power（KW）	Size（mm）	Capacity（KG/H）	Weight（KG）	Roller Size（mm）
GGXM800	1.1	1600*850*800	400	220	800
GGXM1000	1.5	1800*850*800	600	260	1000
GGXM1200	1.5	2000*850*800	800	280	1200
GGXM1500	2.2	2300*850*800	1000	320	1500
GGXM2000	3	2800*850*800	1500	420	2000
GGXM2600	4.37	3100*850*1450	2000	600	2600

Here is our Machine working process for your reference!!

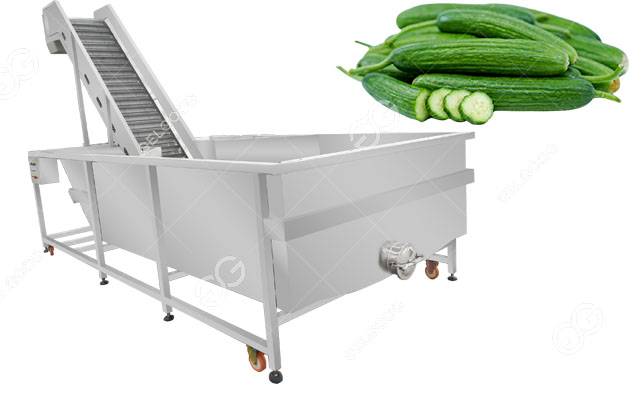

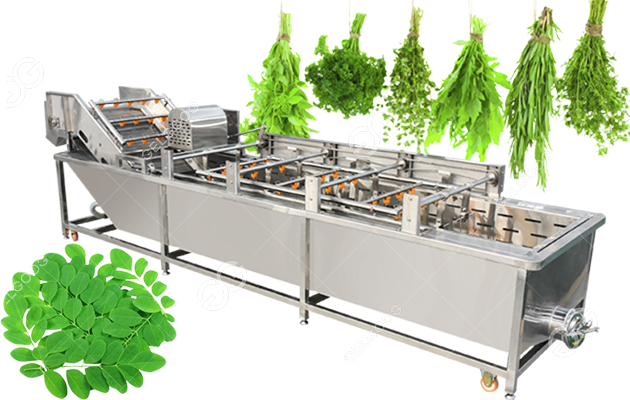

About the brush washing and peeling machine,we also have another type for your reference!!
